Series 5
Specification
AL-KO Chassis
1 axle
GRP monocoque thickness in mm
12-15
Wall thickness incl. insulation in mm
70
Length / Width / Height in cm
720 / 240
Body length (exterior) in cm
550
Interior width in cm
225
Interior height in cm
210
Mass in running order in kg
~ 1.500
Maximum payload in kg
300
Technically permissible total mass (GVWR) in kg
1.800
Tyre size
185/65 R15 T XL
Bedroom Bed size, L x W in cm
200 x 160
Living Room slide-out sofa
1
Number of berths
2 + 1
Roof windows
Mini Heki
Air conditioning
1.5 kW
Induction hob
Black glass - ceramic hob
Fresh water tank capacity in l
50
Electric boiler
14 l
Thetford cassette toilet
C223-CS
230V Sockets
11
USB Sockets
2
LED ambient lighting
Yes
Refrigerator
114 L
Standard Equipment
General
- 15-year monocoque warranty
Chassis
- Alloy wheels
- Wide-track safety chassis with axle shock absorbers
- AL-KO low-friction chassis, fully galvanised
- Low-profile tyres
- AL-KO premium corner steadies
- Premium stabiliser with Softdock
- AL-KO Premium brake (automatic brake-pad adjustment)

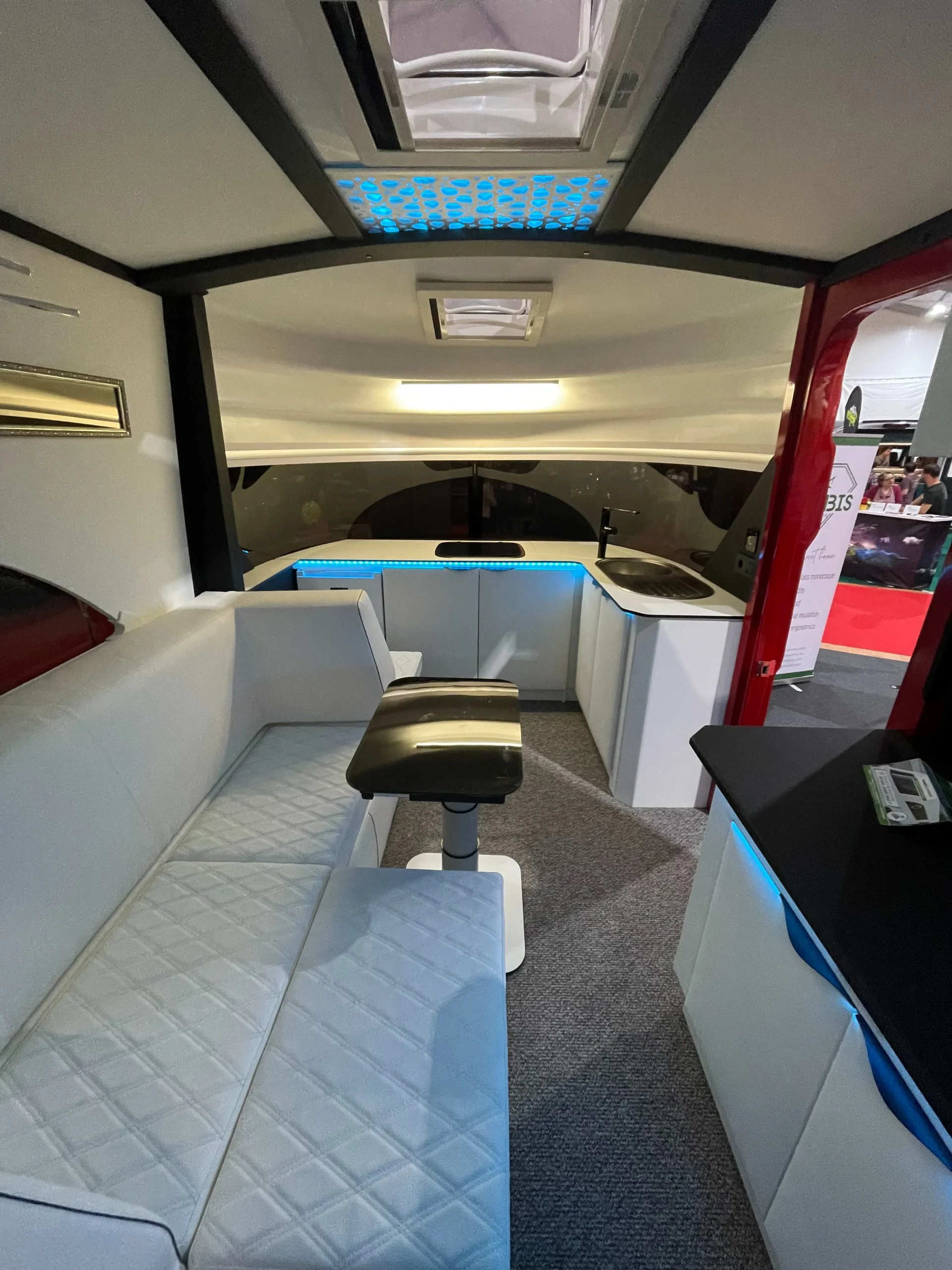

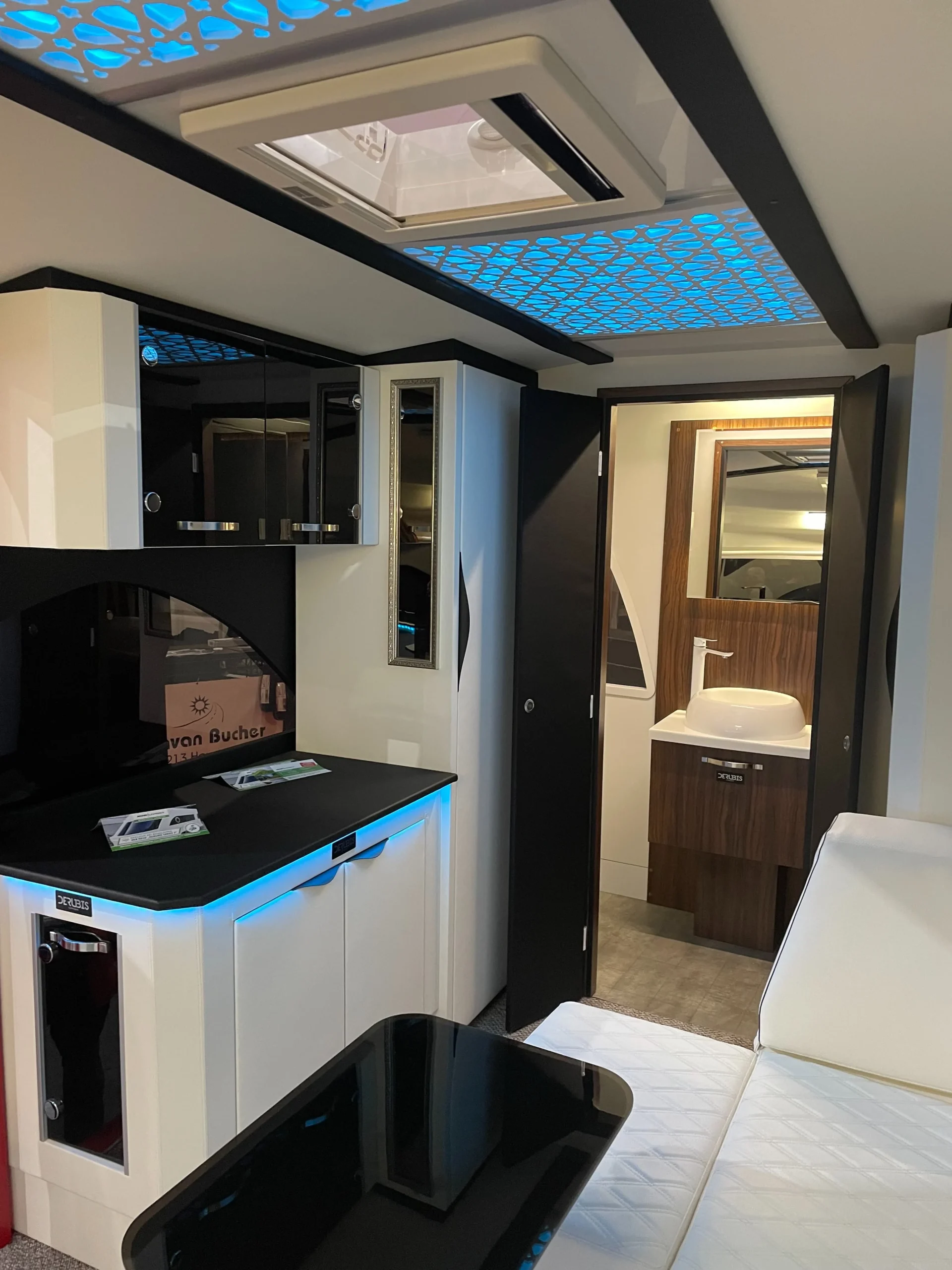

Living
- Furniture décor
- Upholstery options
- Vertical aluminium support at the entrance
- Sliding doors as room dividers
- Living room table
- Indirect LED light strip in the canopy (ambient lighting)
- High-quality floor covering
- Centrally controlled lighting with dimmer
- Smoke detector

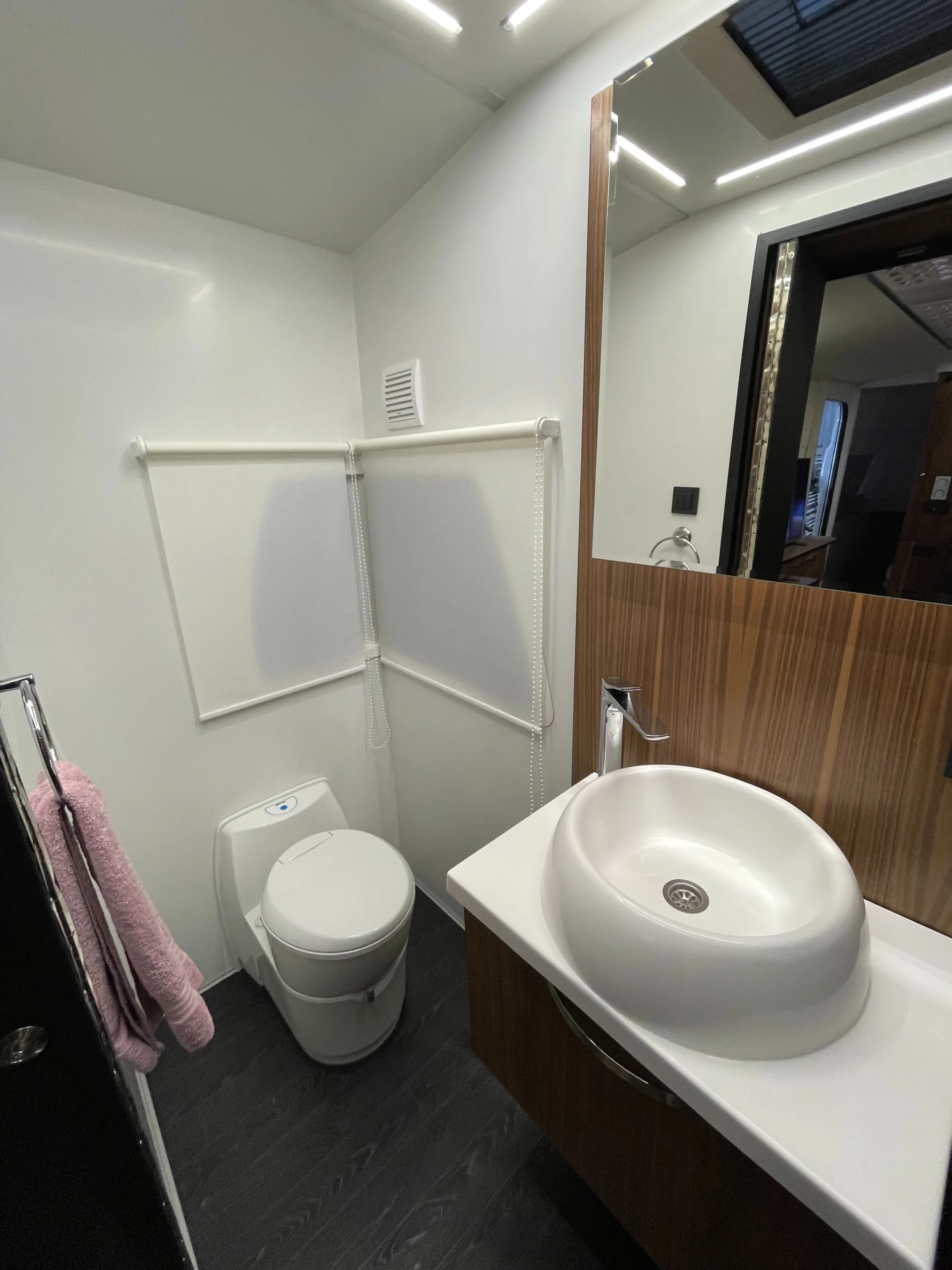

Kitchen & Bathroom
- Stainless steel sink
- Cabinet with LED mirror and storage in the bathroom
- 12V LED lighting
- 230V water heater
- Cassette toilet
- High-quality soft-close drawers
Power Supply
- 13-pin plug system
- Recessed LED spotlights (energy-saving, long lifespan)
- Optimised power supply (constant brightness under changing light conditions, no flicker)
- 32″ flat-screen smart TV
- USB port
- Electric underfloor heating
- Hot water supply (in kitchen and toilet)
- 50-litre fresh water tank integrated into the multifunctional floor
- City Water connection

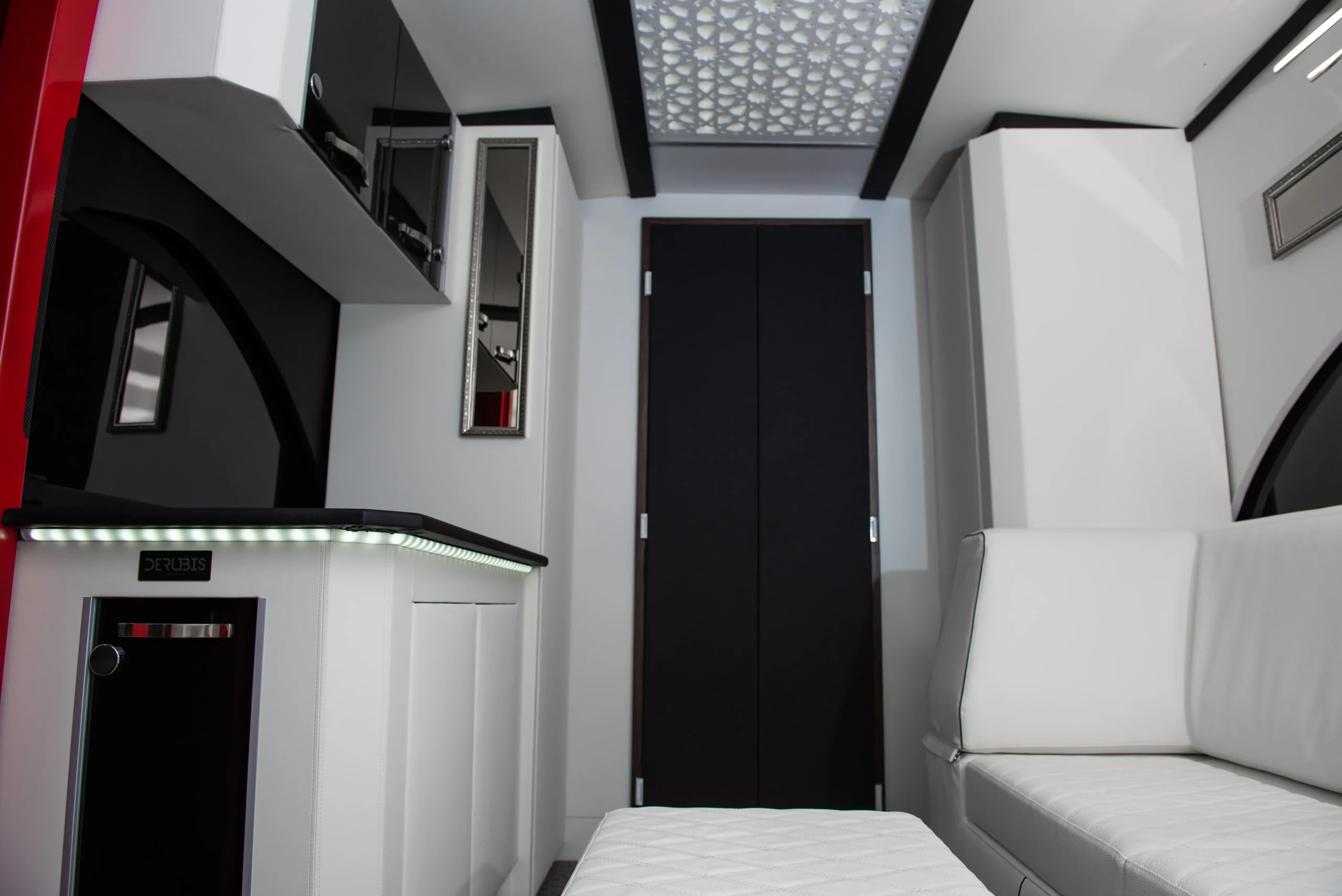

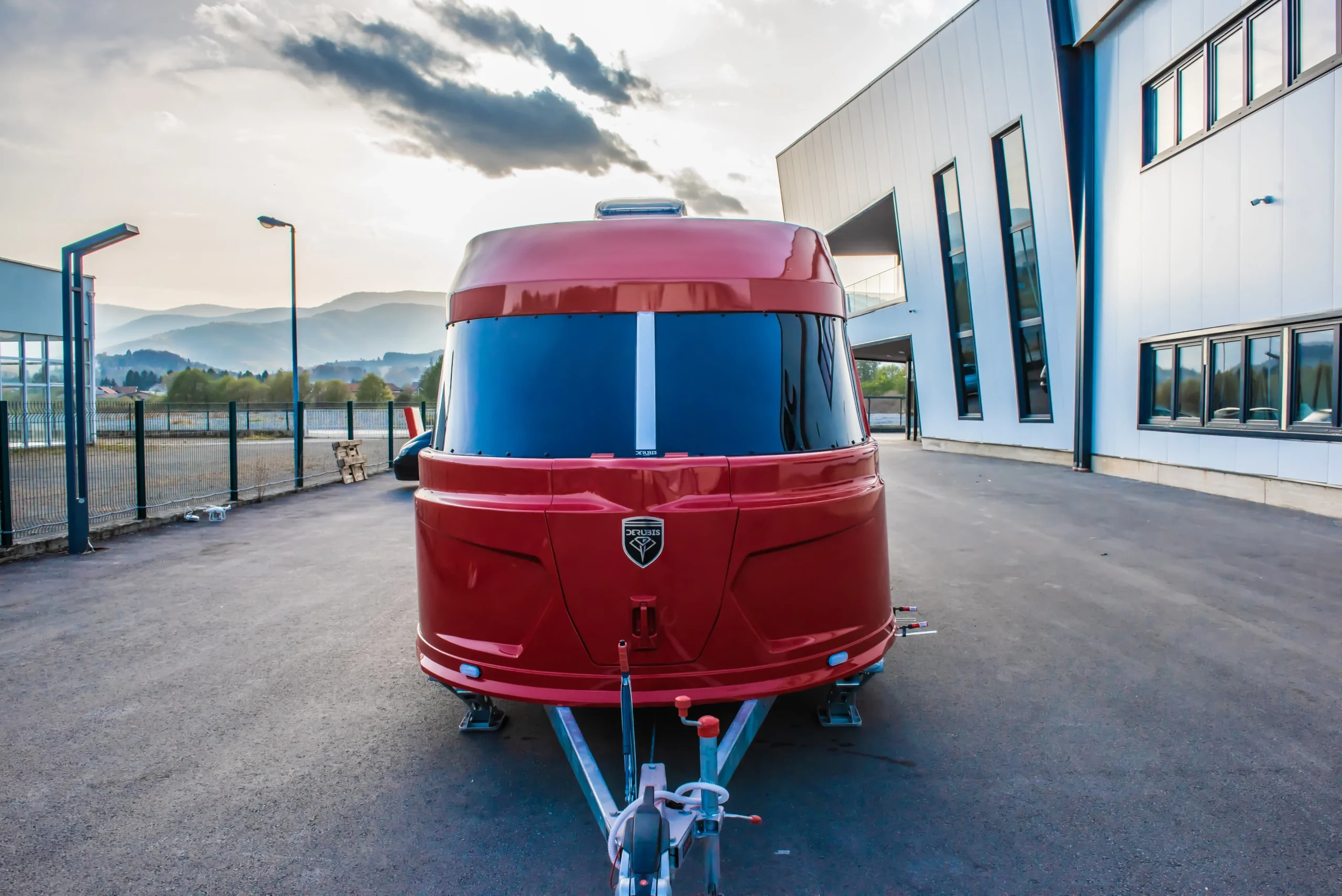

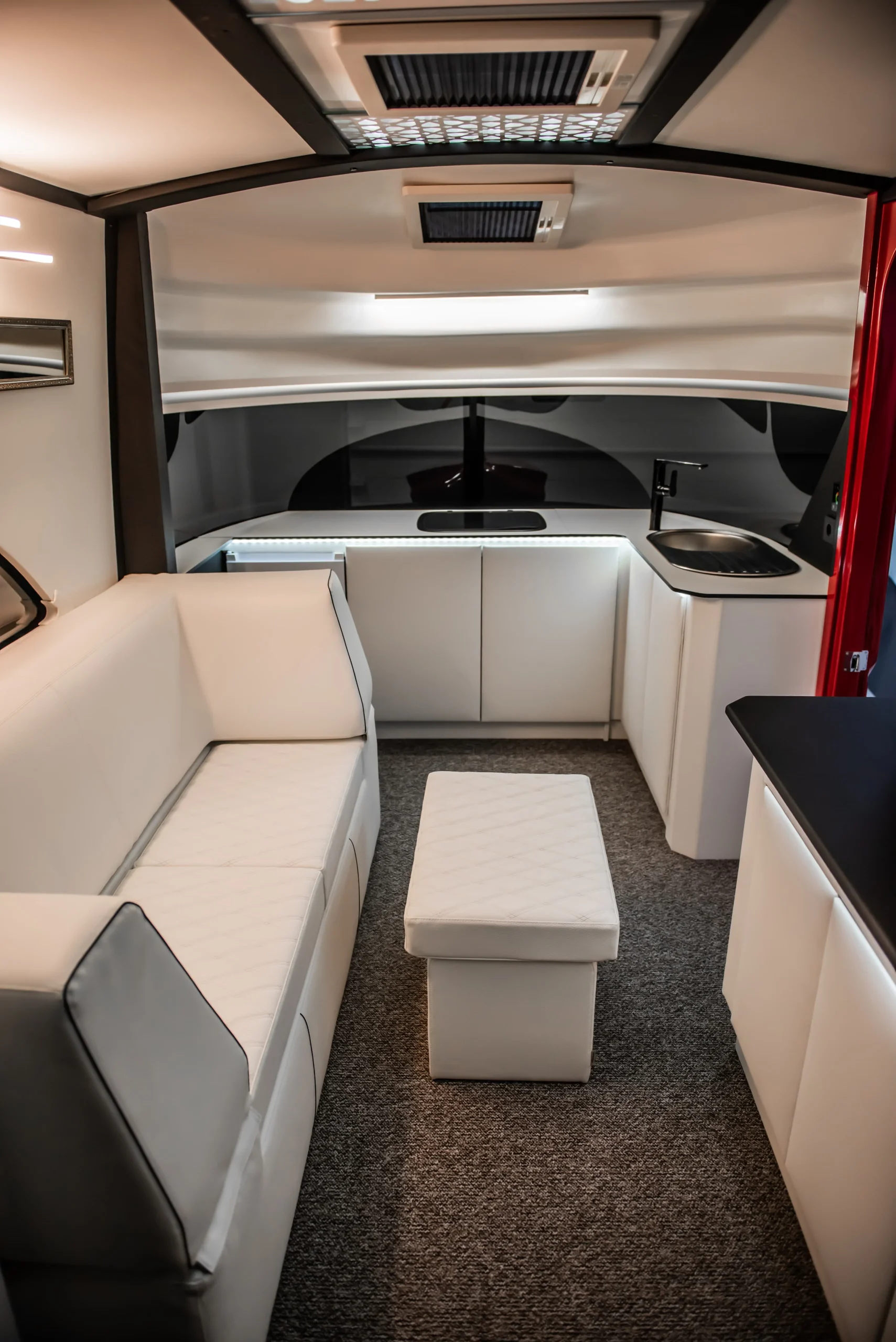

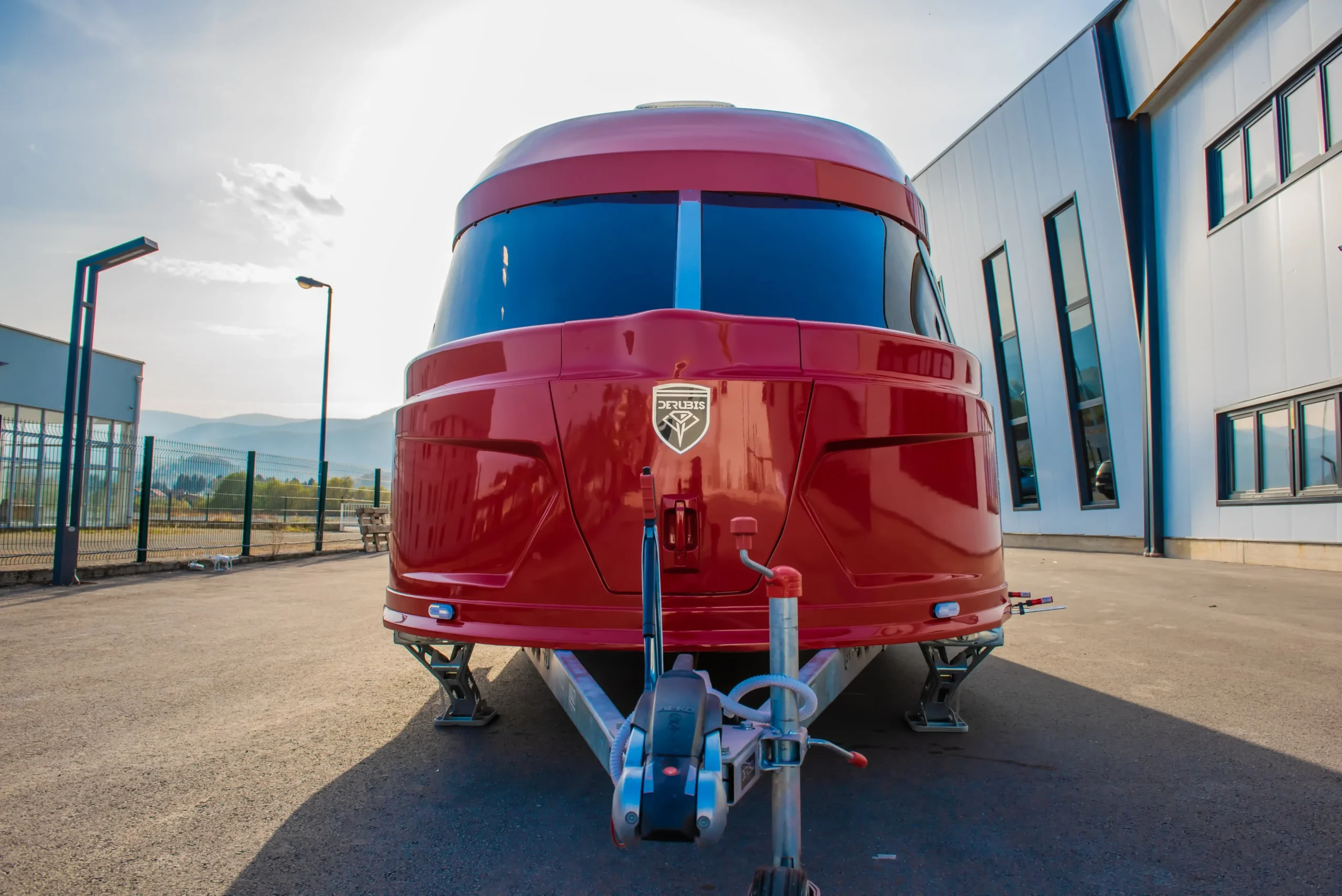

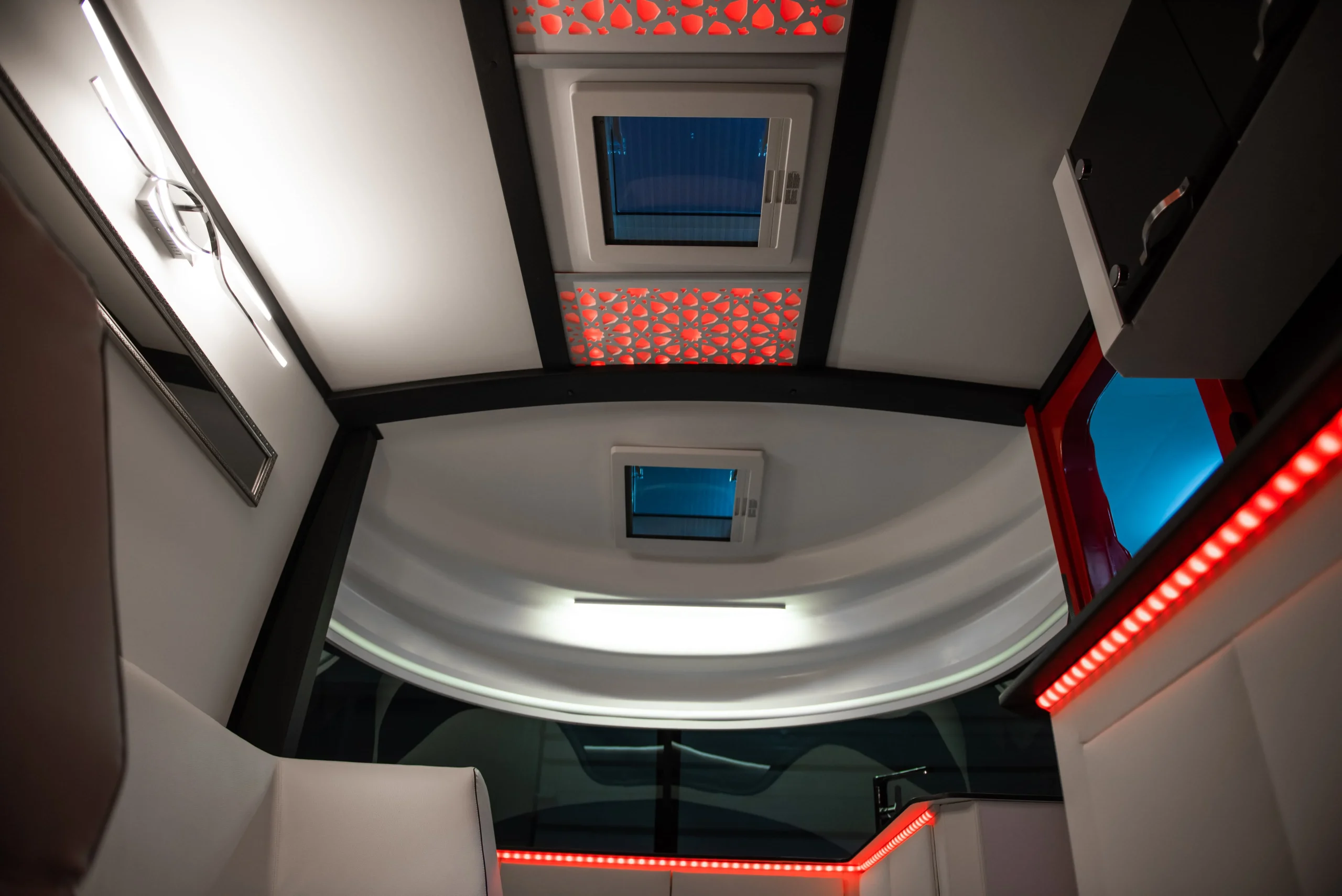

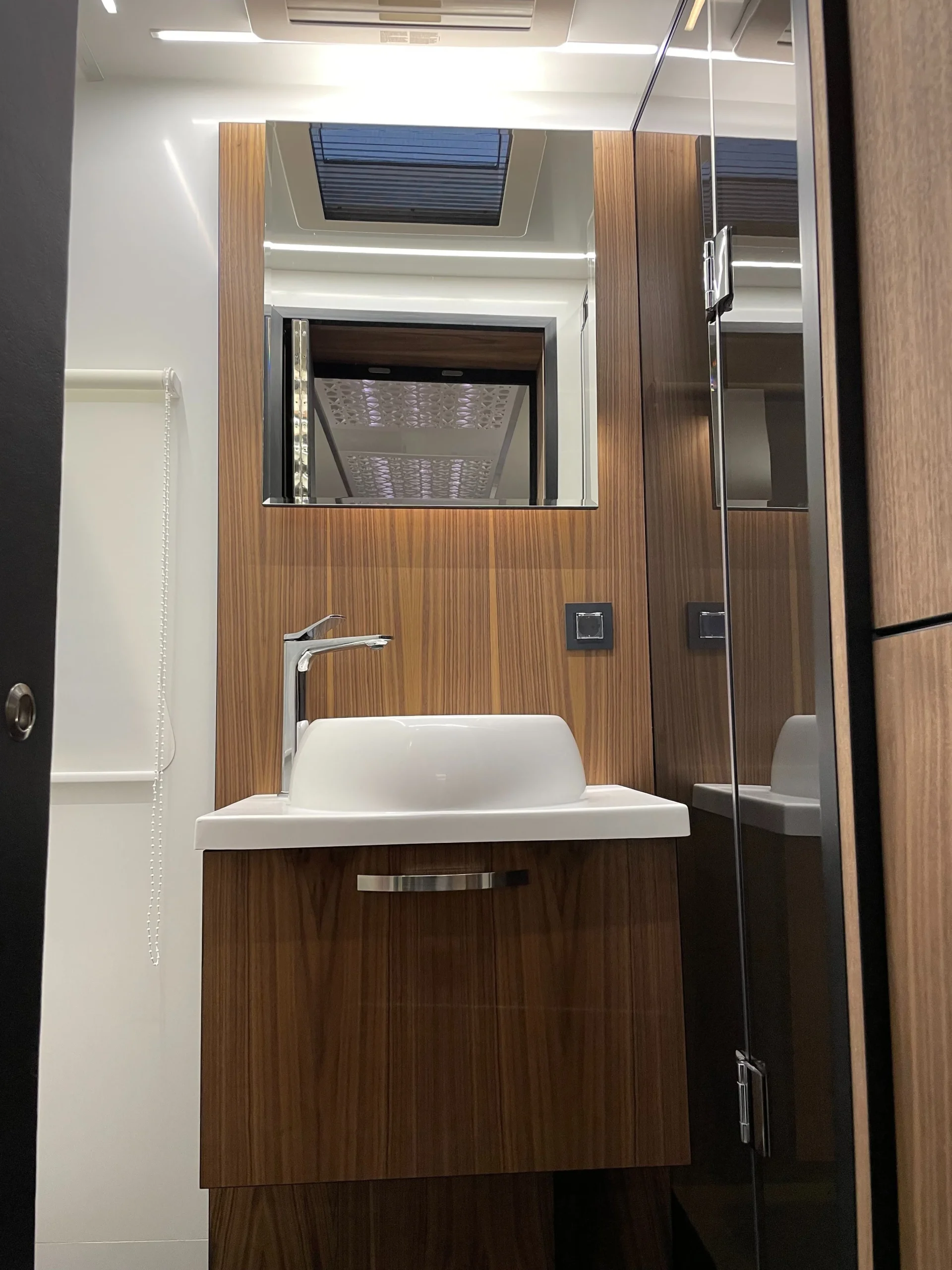

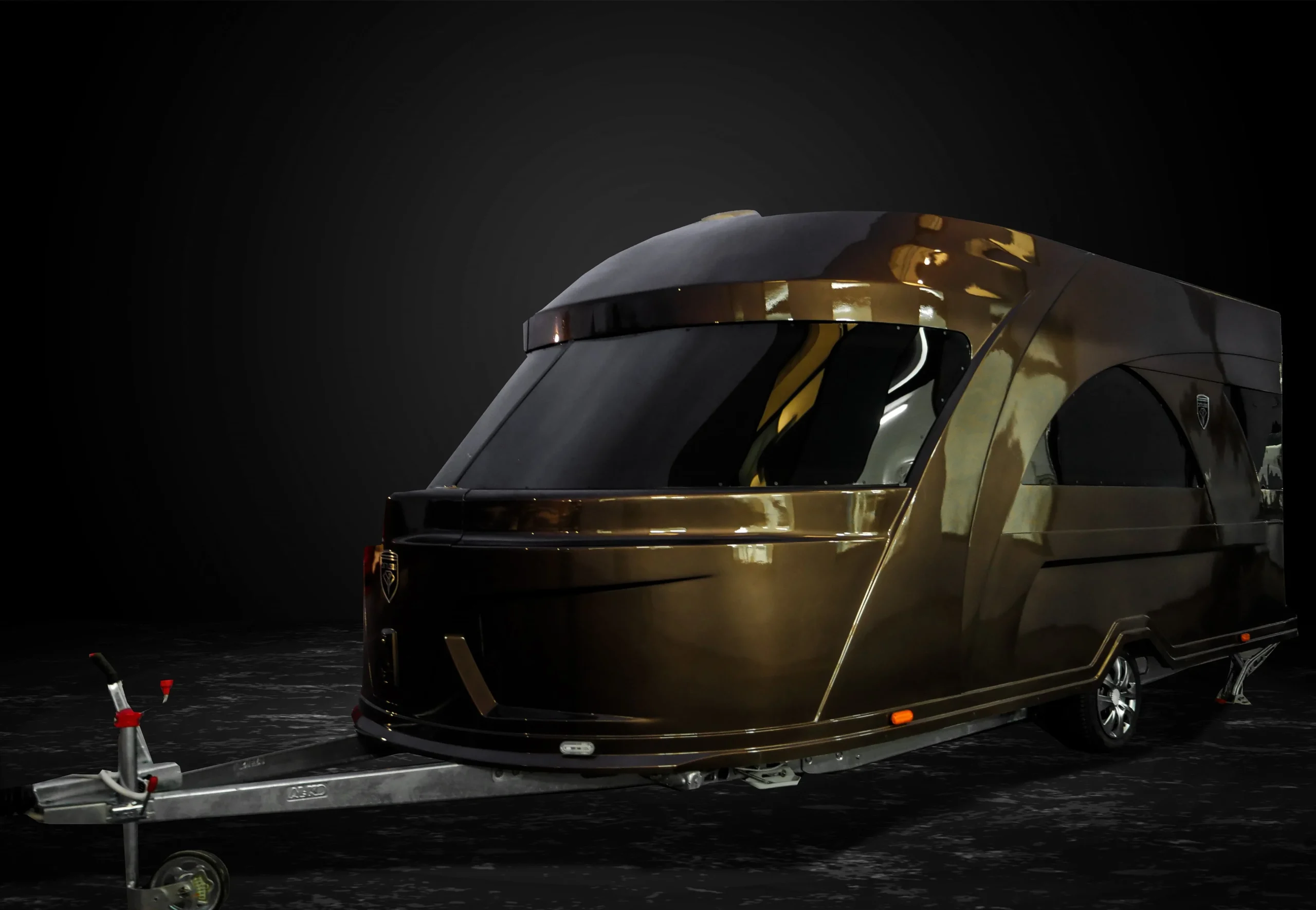

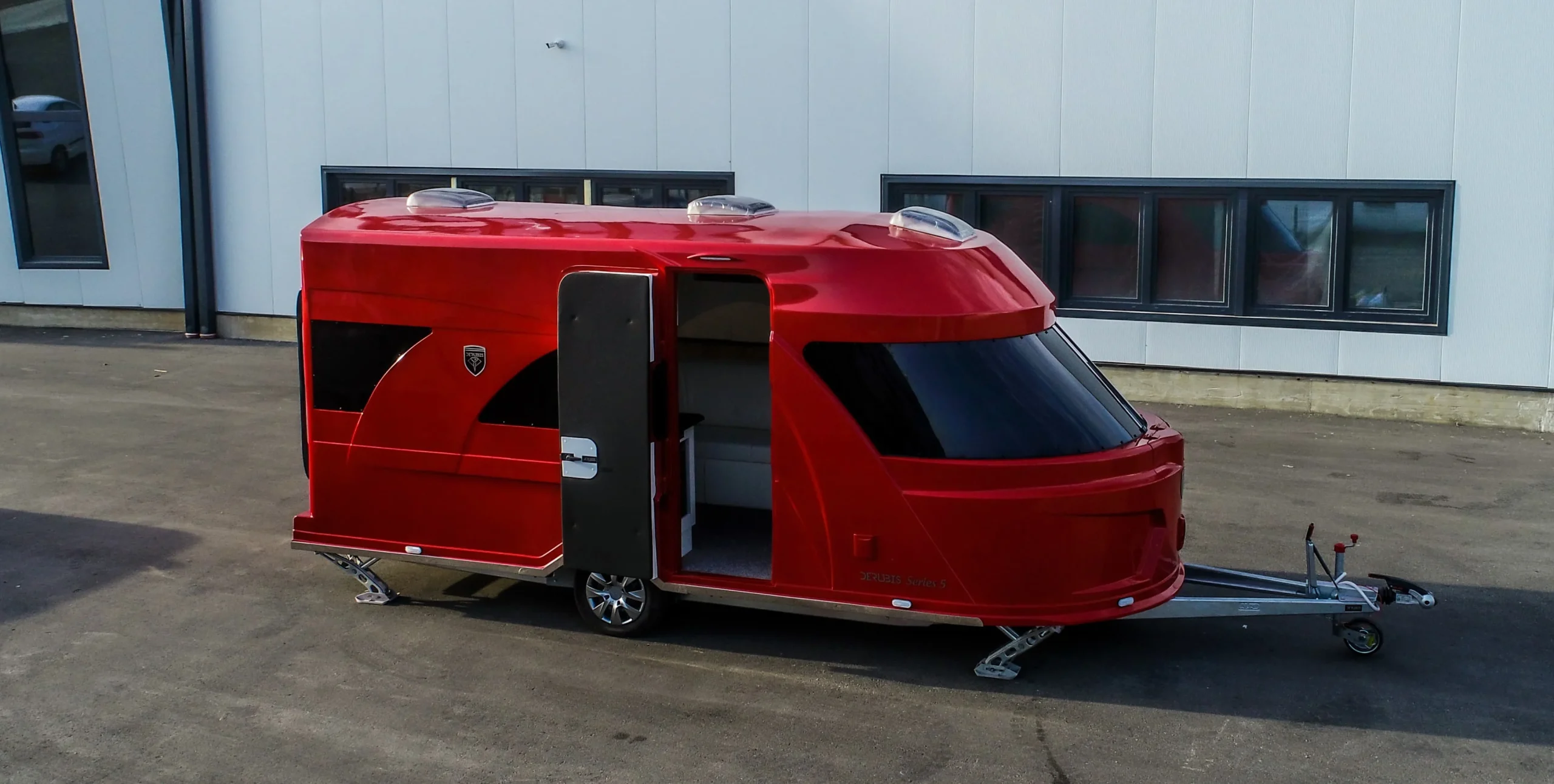

Photo Gallery
A closer look at the craft behind every build.
