Series 7
Specification
AL-KO number of axles
2
Overall length in cm
8.700
Usable length in cm
7.200
Overall width / interior width in cm
240/225
Overall height / interior height in cm
265/210
Mass of the unladen vehicle in kg
~ 1.900
Mass in running order in kg
~ 2.100
Number of roof hatches
3
Max. Payload in kg
~ 2.700
Technically permissible total mass in t (depending on variant)
2,0 - 2,7
Tyre size
185/65 R14
Front bed size in cm (oval shape)
230 x 160

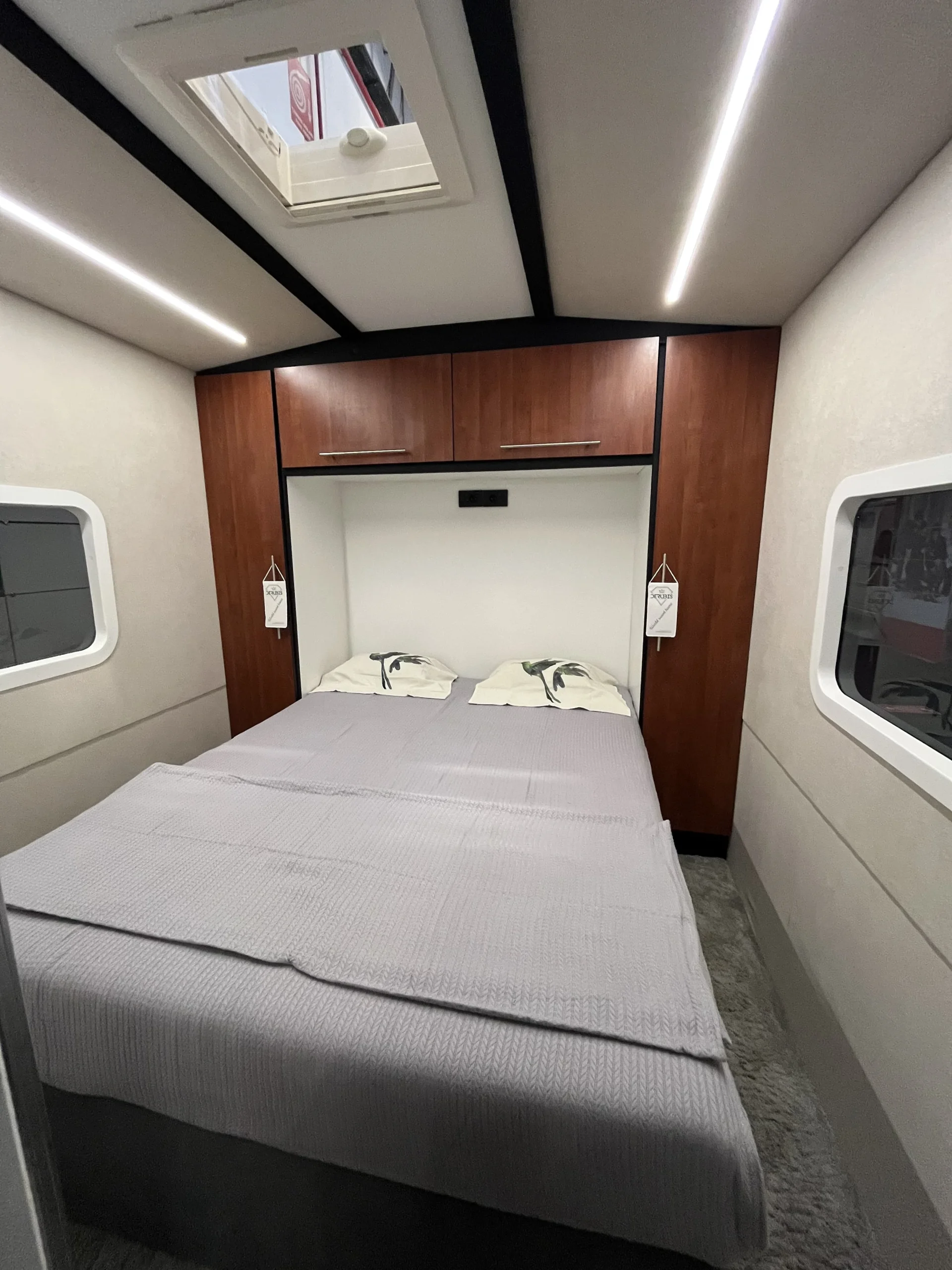

Bed size, centre, in cm (pull-out)
200 x 160
Number of berths
4
Number of sockets (230V)
11
Number of USB ports
2
2.5kW
Burner hob
Black glass-ceramic hob
Smart TV
32"
Cassette WC
Thetford C223-CS
Refrigerator / volume (net)
114 l, freezer: 15 l
Standard Equipment
General
- 15-year monocoque warranty
Chassis
- Alloy wheels
- Wide-track safety chassis with axle shock absorbers
- AL-KO low-friction chassis, fully galvanised
- Low-profile tyres
- AL-KO premium corner steadies
- Premium stabiliser with Softdock
- AL-KO Premium brake (automatic brake-pad adjustment)
Living
- Furniture décor
- Upholstery options
- Vertical aluminium support at the entrance
- Huge seating sofa with extra-high backrest for optimal comfort
- Sliding doors as room dividers
- Table for the round seating group

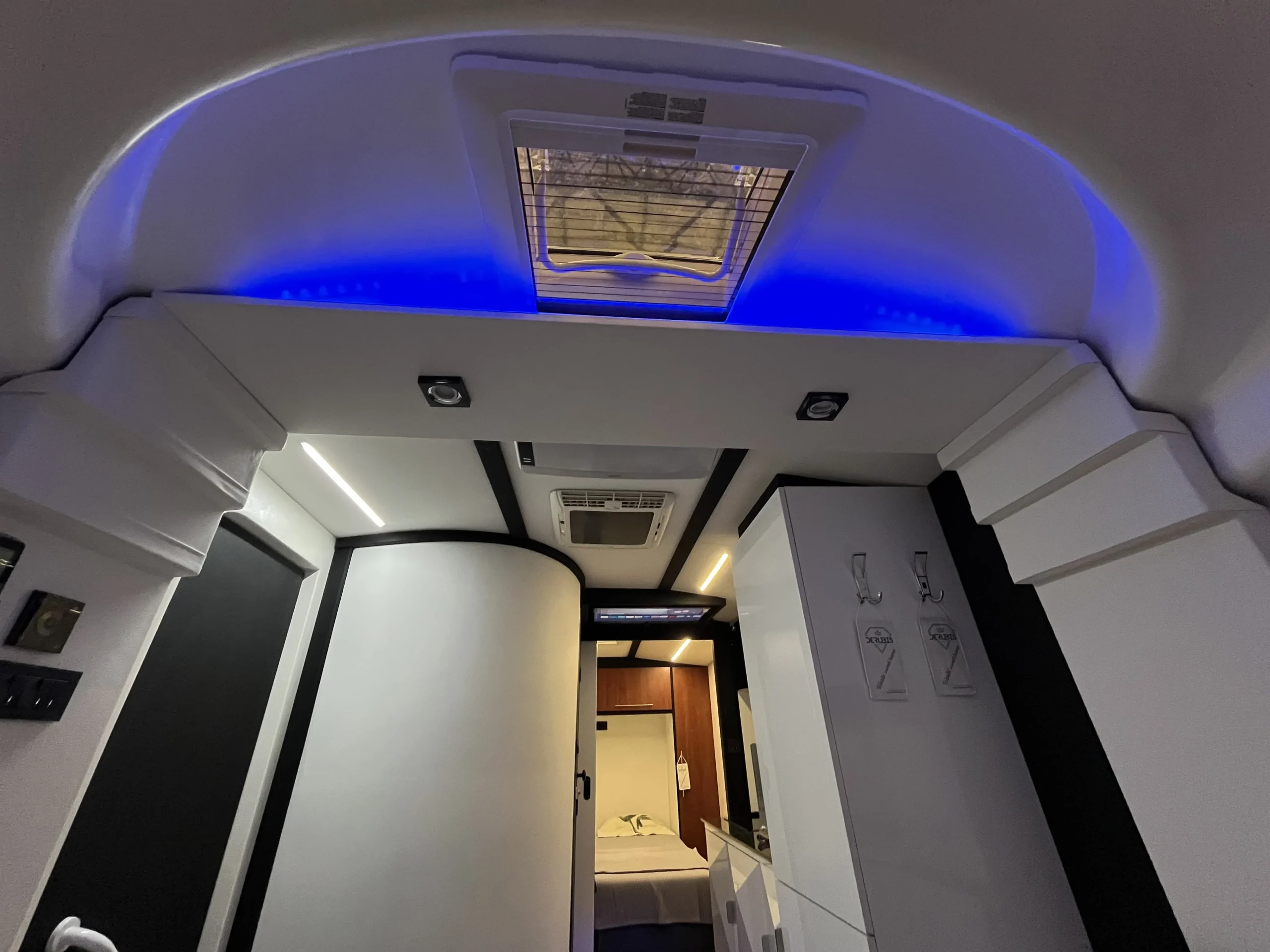

- Indirect LED light strip in the canopy (ambient lighting)
- High-quality floor covering
- Centrally controlled lighting with dimmer
- Smoke detector
Kitchen & Bathroom
- Stainless steel sink

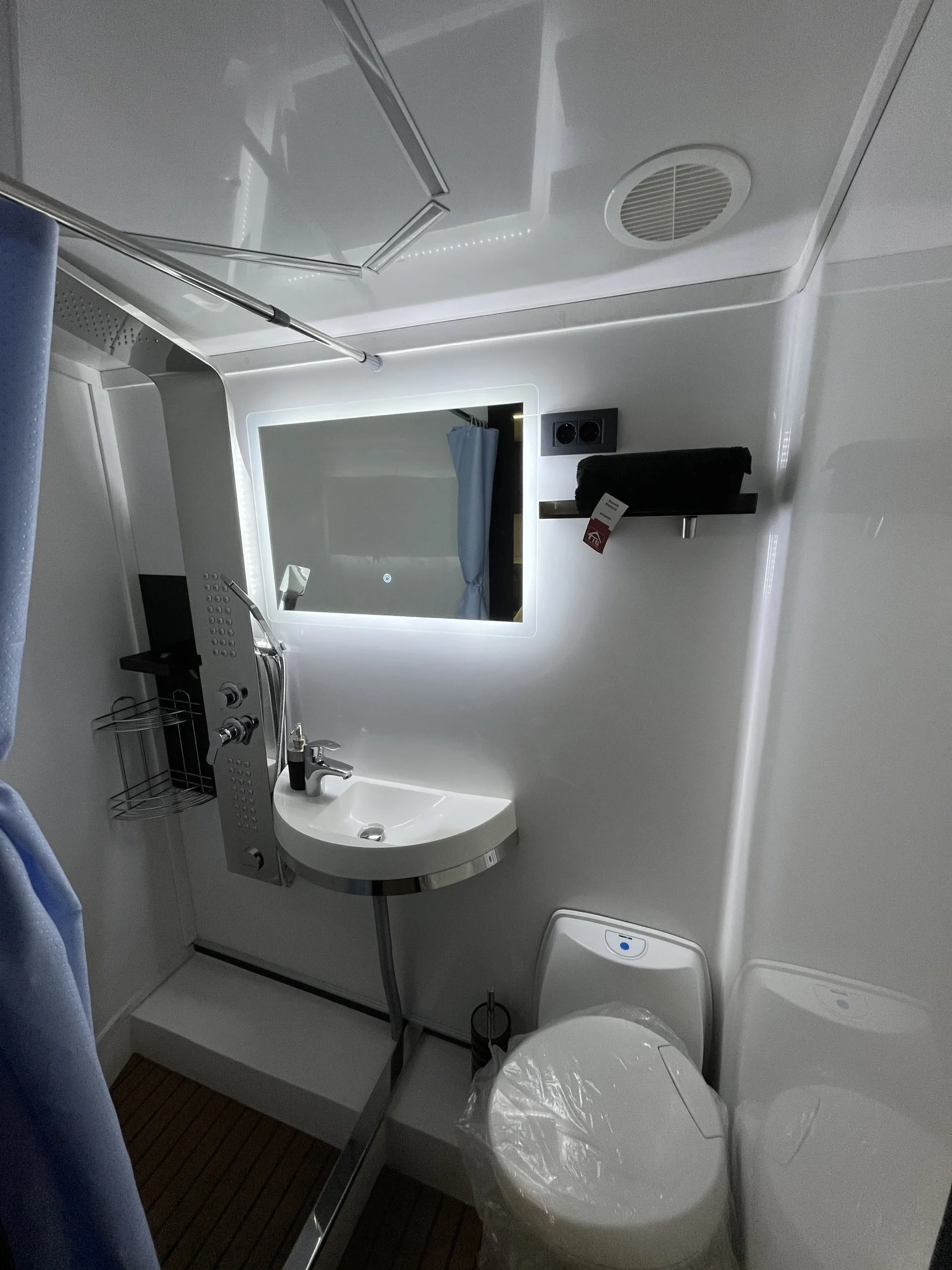

- Cabinet with LED mirror and storage in the bathroom
- 12V LED lighting
- Cassette toilet
- High-quality soft-close drawers
Power Supply
- 13-pin plug system
- Recessed LED spotlights (energy-saving, long lifespan)
- Optimised power supply (constant brightness under changing light conditions, no flicker)

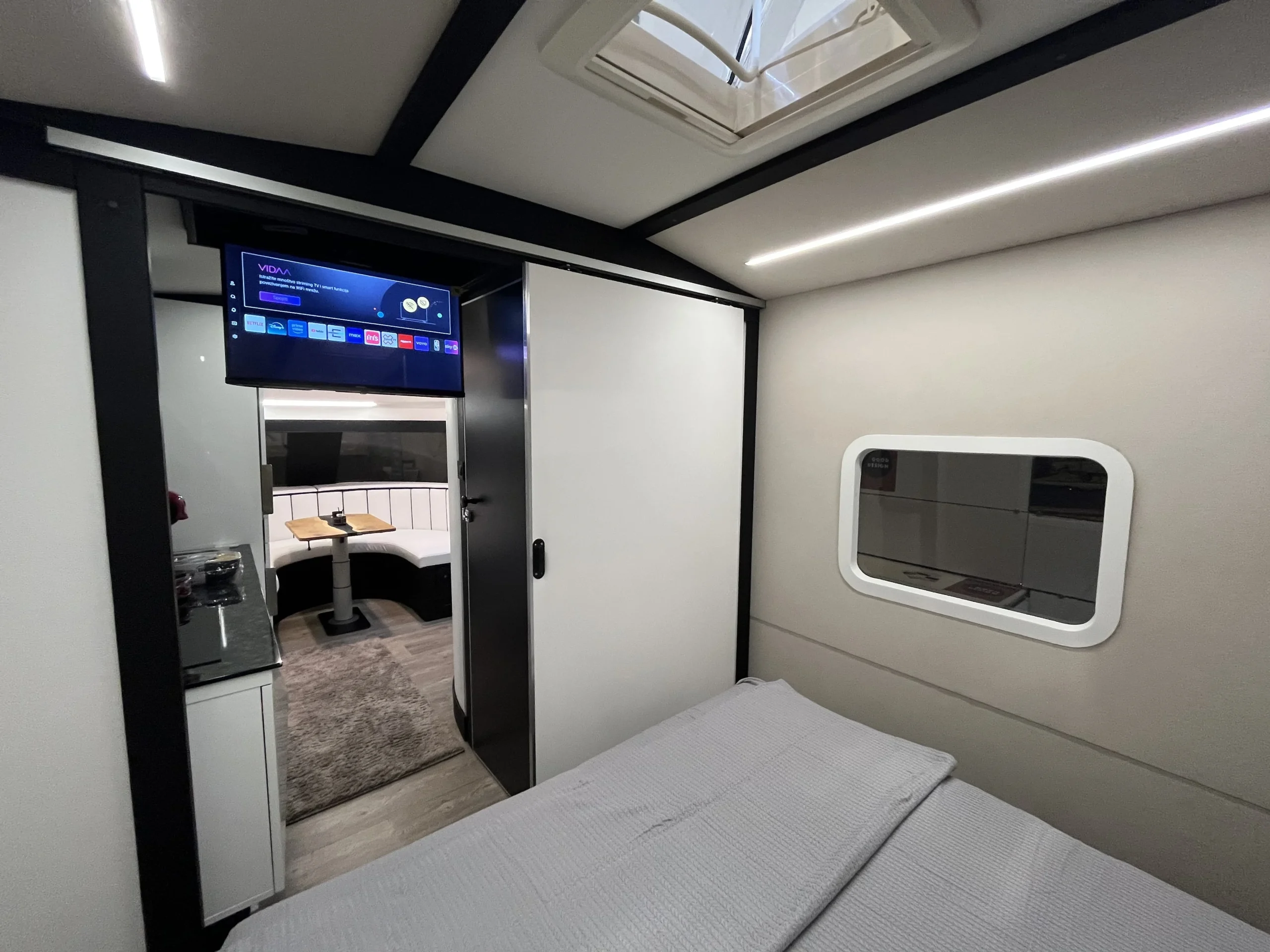

- 32″ flat-screen smart TV
- USB port
- Electric underfloor heating
- Hot water supply (in kitchen and toilet)
- 100-litre fresh water tank
- City water connection

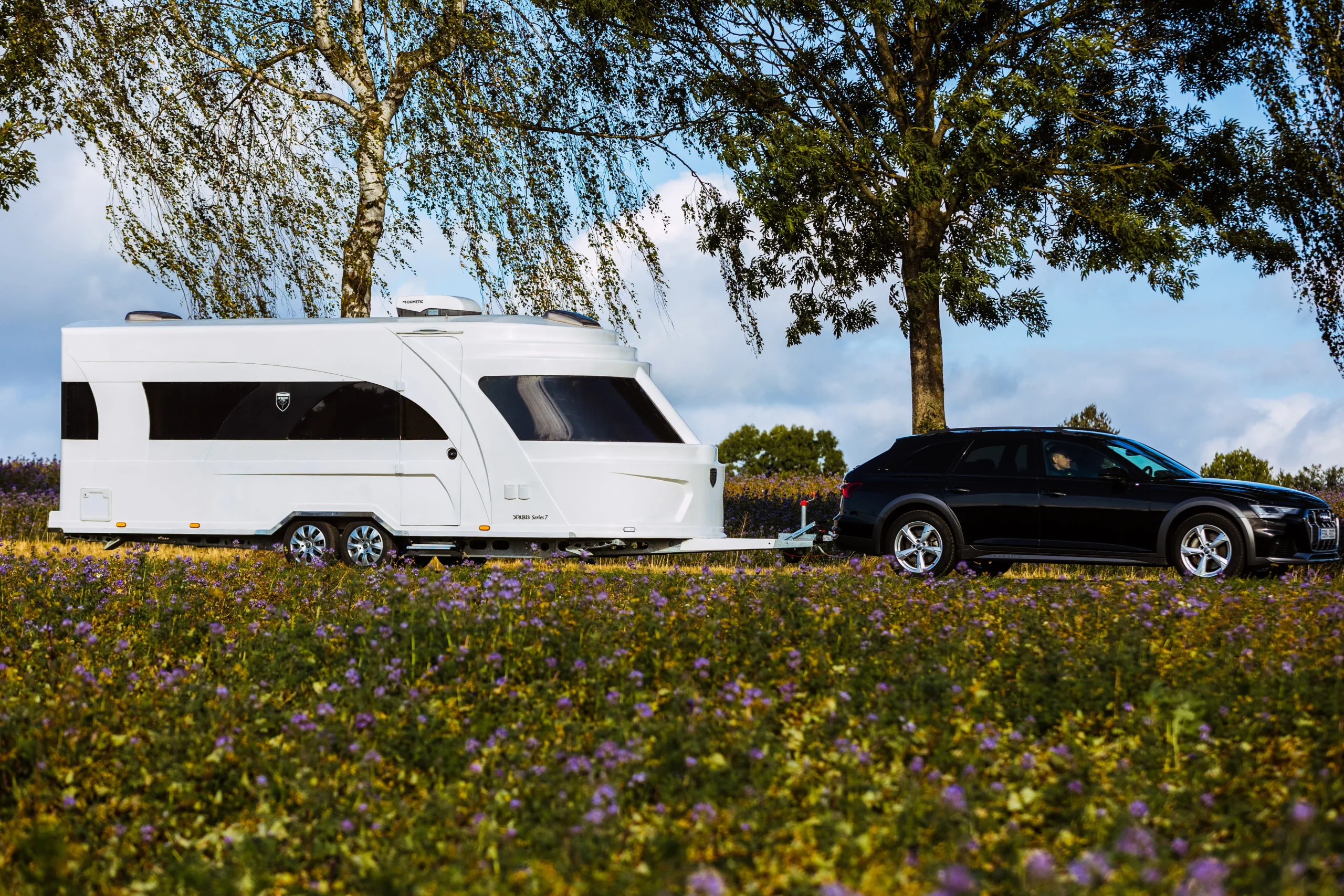

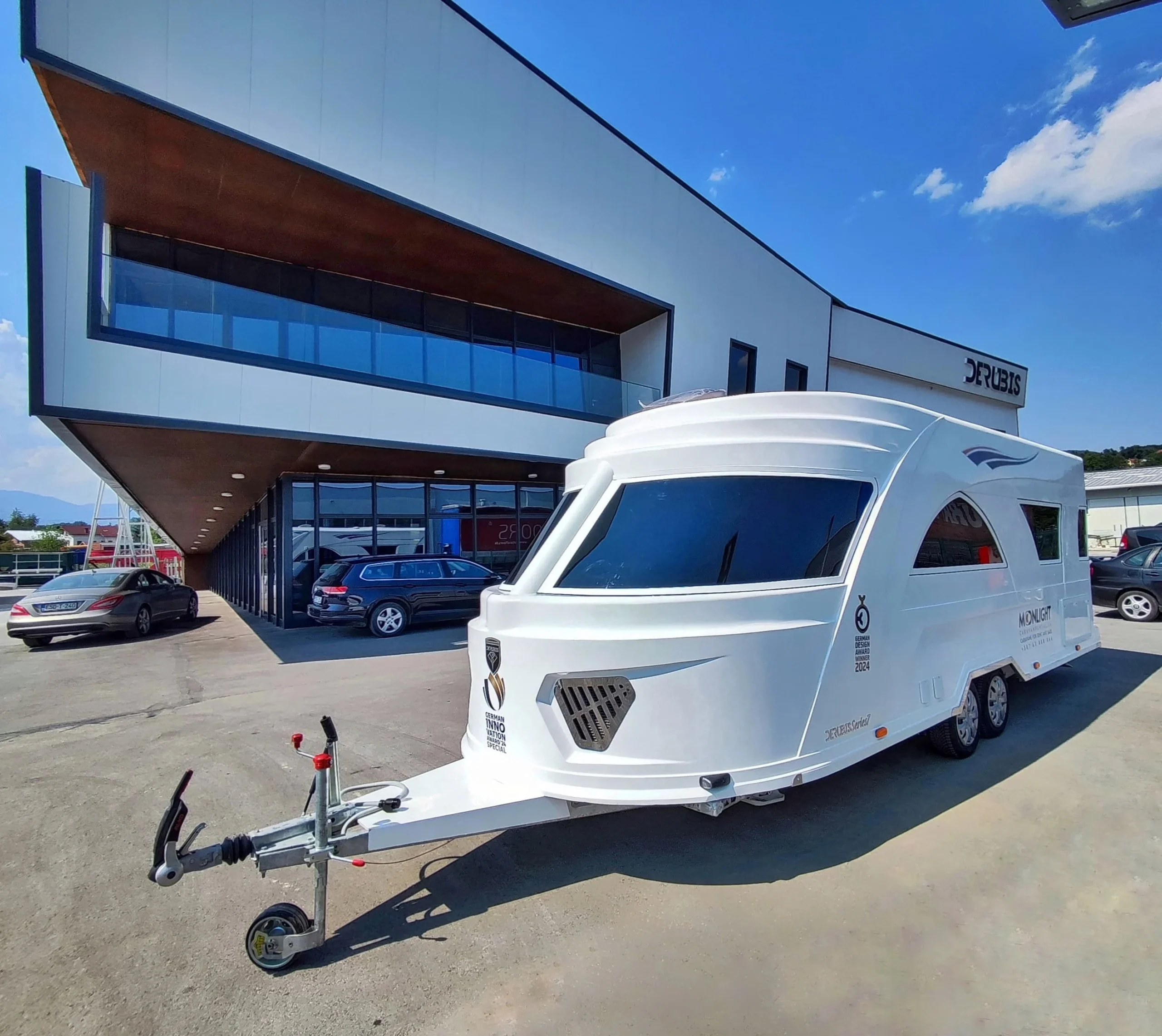

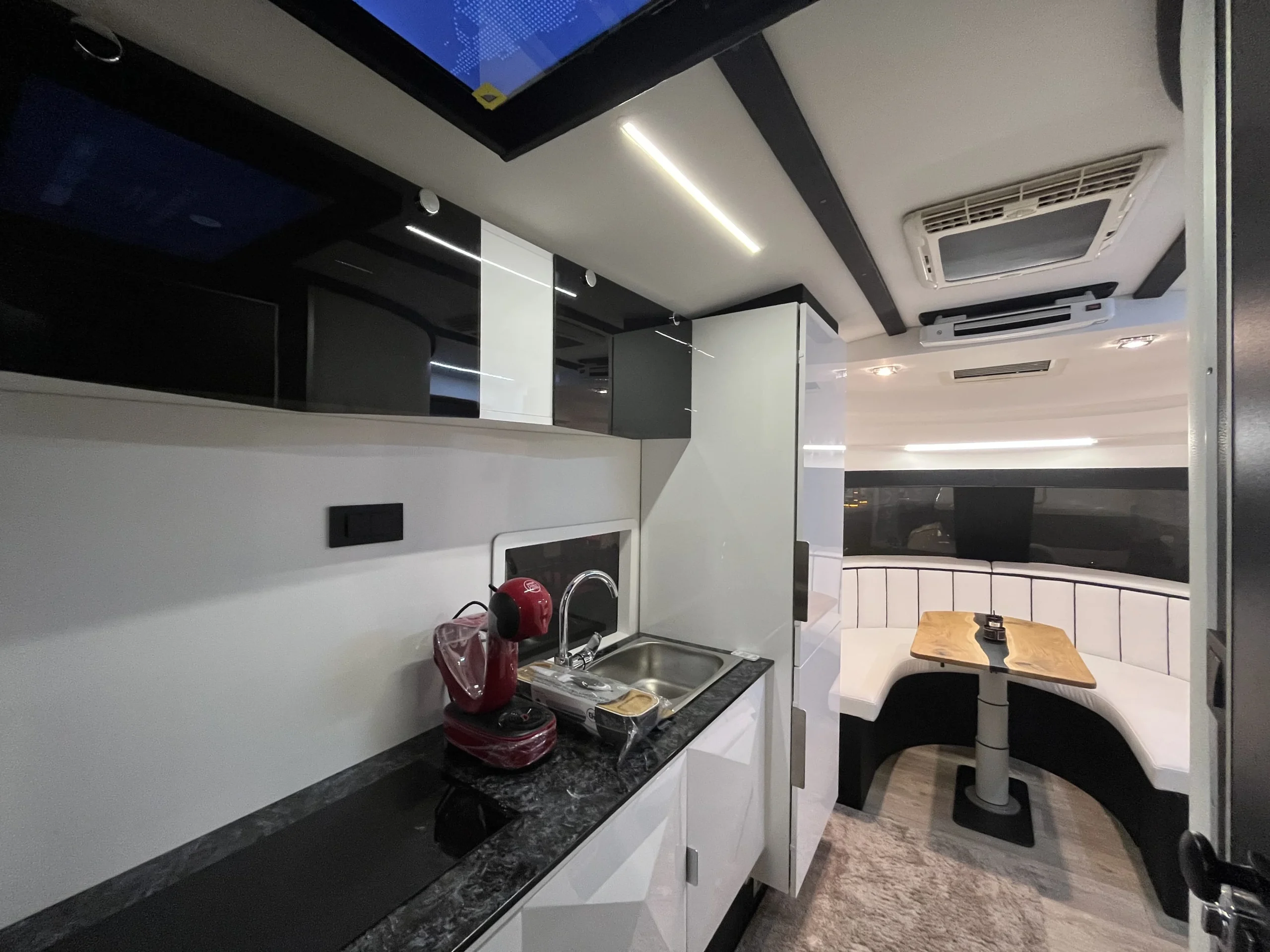

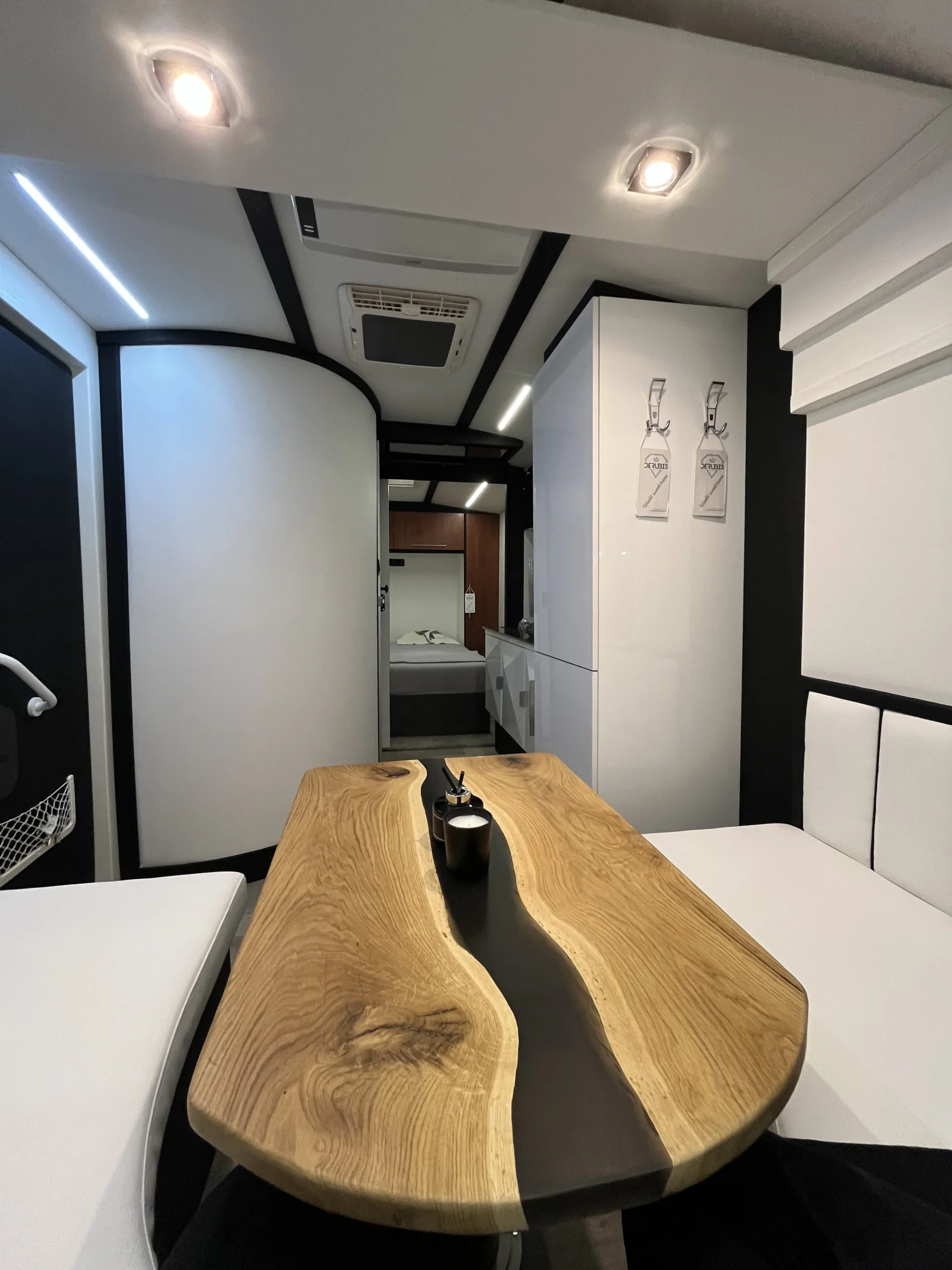

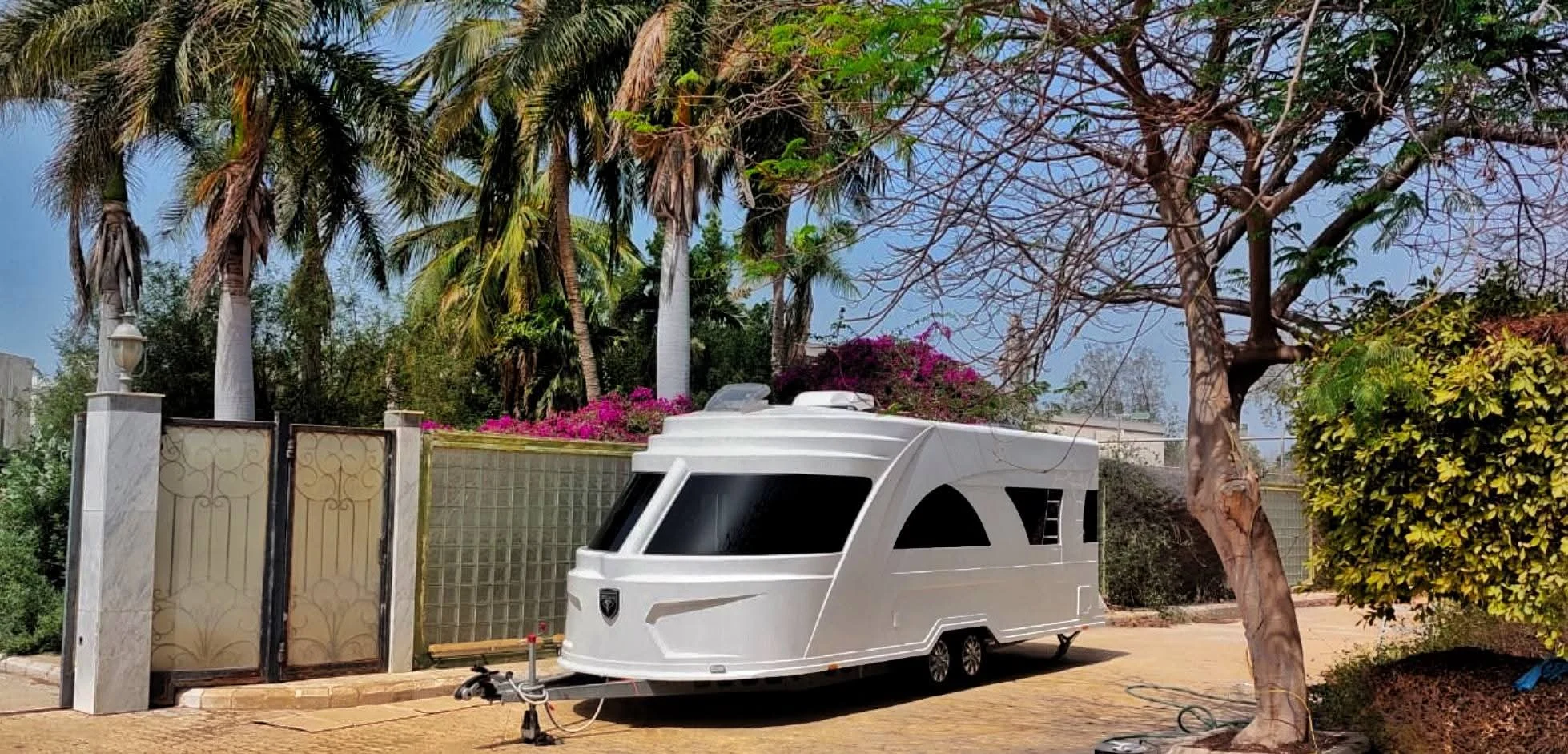

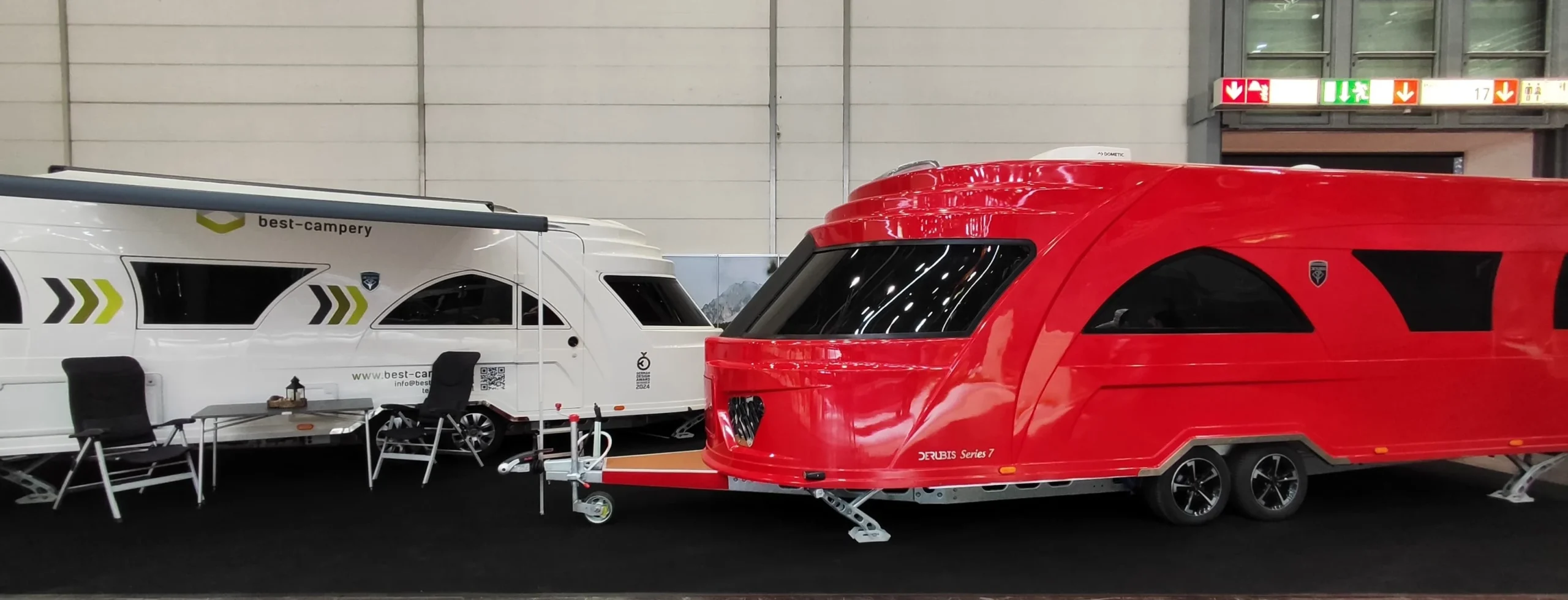

Photo Gallery
A closer look at the craft behind every build.
